Optical characterization and optimization of OLEDs

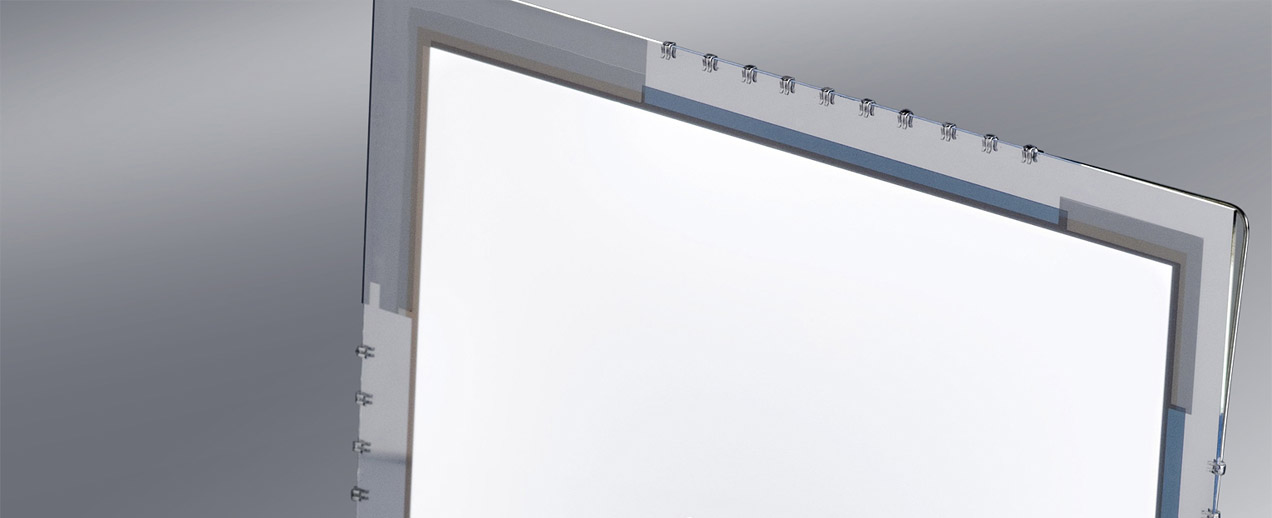

Optics of organic LEDs

The quantitative optical description and general technical optimization of the upcoming, commercial light source organic LED require a profound knowledge of the active & passive optical properties of the system „OLED“.



Optical Characterization

  • Model free determination of thin film material dispersions n(λ)+ik(λ)
  • Measurement of layer thicknesses inside final OLED stacks
  • Measurement of polarized, angular & spectrally resolved emission pattern in air and substrate glass, respectively
  • Detailed optical modelling using in-house software („Radiating Slabs“)
  • Conclusion to properties of electrically pumped OLED emitting material



Emitter Properties

OLEDs comprising an adapted thin film stack (e.g. emitter – cathode – distance) enable to determine

  • internal electroluminescence spectrum,
  • emitter orientation distribution,
  • profile of the emission zone, and
  • quantum efficiency of excited state luminescence

by far-field radiation pattern measurement in conventional, electrically pumped operation and subsequent optical analysis.



References

M. Flämmich, N. Danz et al. in:

  • Appl. Opt. 48 (2009) 1507
  • Appl. Phys. Lett. 95 (2009) 263306
  • Org. Electron. 11 (2010) 1039

M.C. Gather, N. Danz et al. in:

  • Appl. Phys. Lett. 94 (2009) 263301
