Coating for Space and Precision Optics

Coating systems for precise and heavy-duty optics

Your partner for individual coatings



We support you with the ideal coating based on our 20 years of experience in optical coatings for demanding applications such as space and medical technology. In addition to optical properties, other functions such as resistance to environmental conditions, adhesion, scratch resistance, and shape tolerances are taken into account.

We offer:

  • Development of metal coatings and metal-dielectric coatings
  • Optimization of coating properties (stress, roughness, optical properties, electrical properties) according to customer specifications
  • Prototype coatings

Our main services and expertise

We design, develop, and qualify optical coatings for your demanding application. We deposit the appropriate coating for your application using PVD (Physical Vapor Deposition), which can be either a single piece or a small series. By means of adapted coating processes, we can coat many small or a few large (up to one meter) parts at the same time.

Metal-dielectric coating systems for highest reflectivity or for light extinction (blackening) are our core competence. In addition to highly reflective, partially transparent, and blackening coating systems, we offer anti-reflective coatings made of inorganic materials. If parts of the component’s surfaces require different properties, e.g., one part of the surface is supposed to be highly reflective and another one is to be blackened, we will be happy to provide a combination of coating and structuring for you.

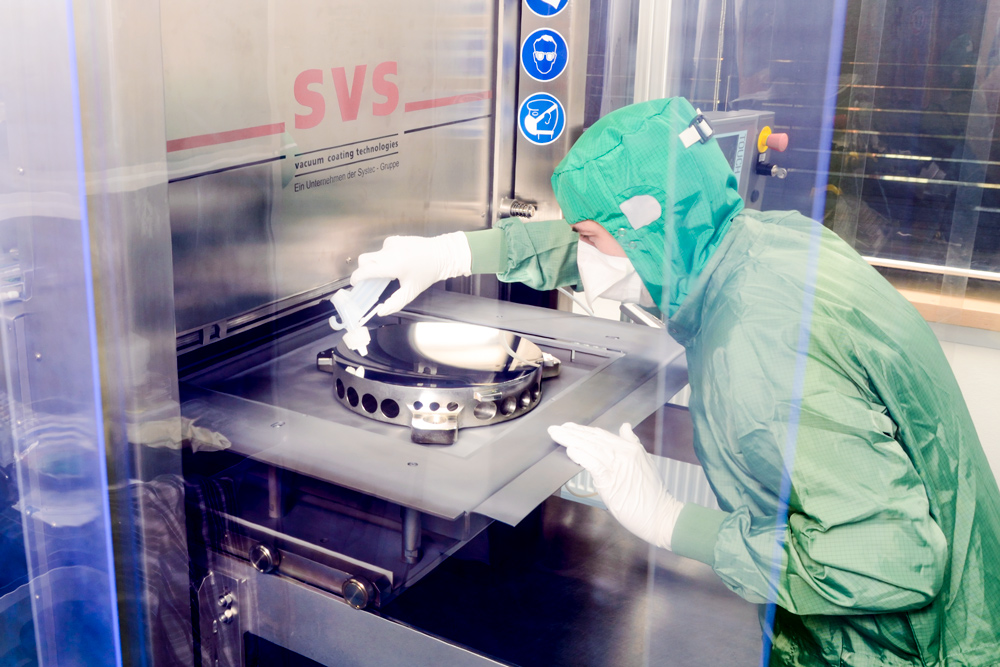

Coating of mirrors by magnetron sputtering.
© Fraunhofer IOF
Coating of mirrors by magnetron sputtering.

Metal-based reflector coatings

  • Metal-based reflector coatings from the VUV to the IR range
  • Smooth aluminum coatings (VUV)
  • Metal dielectric mirrors for short pulse lasers; LIDT (S-on-1 mode) > 1 J/cm2 @ 1030 nm for 8 ps and 425 fs.

High resistance for demanding applications such as

  • Extraterrestrial applications
  • Harsh weather applications
  • Low temperature applications
  • Medical applications: resistance with regard to invasive medicine and sterilization

Coatings for the XUV range

  • Coatings and coating systems for the extreme ultraviolet spectral range

Markets and applications for coated precision optics



Coatings for precision optics are used in many different industries and applications. Some of these markets are space technology and astronomy, plant engineering for research, medical technology, biotechnology, or automotive technology.

  • Space technology
  • Astronomy
  • Reflectors
  • Plant engineering for research
  • Medical technology (e.g., endoscope optics)
  • Biotechnology
  • Automotive technology
  • and much more ...

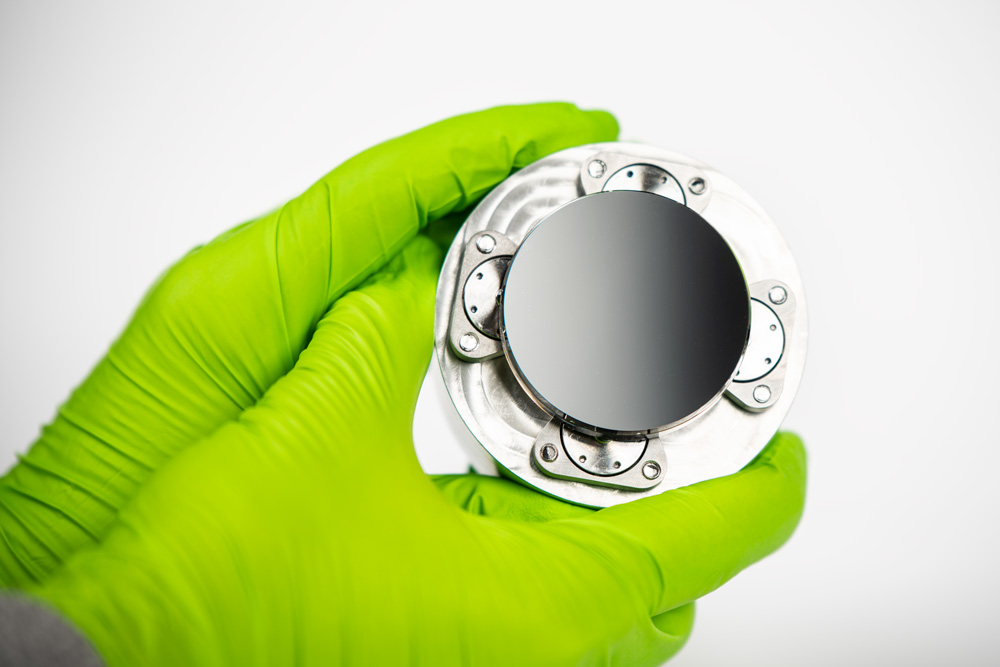

Optimized AI layers for adaptive optics for highly sensitive light scattering detection.
© Fraunhofer IOF
Optimized AI layers for adaptive optics for highly sensitive light scattering detection.

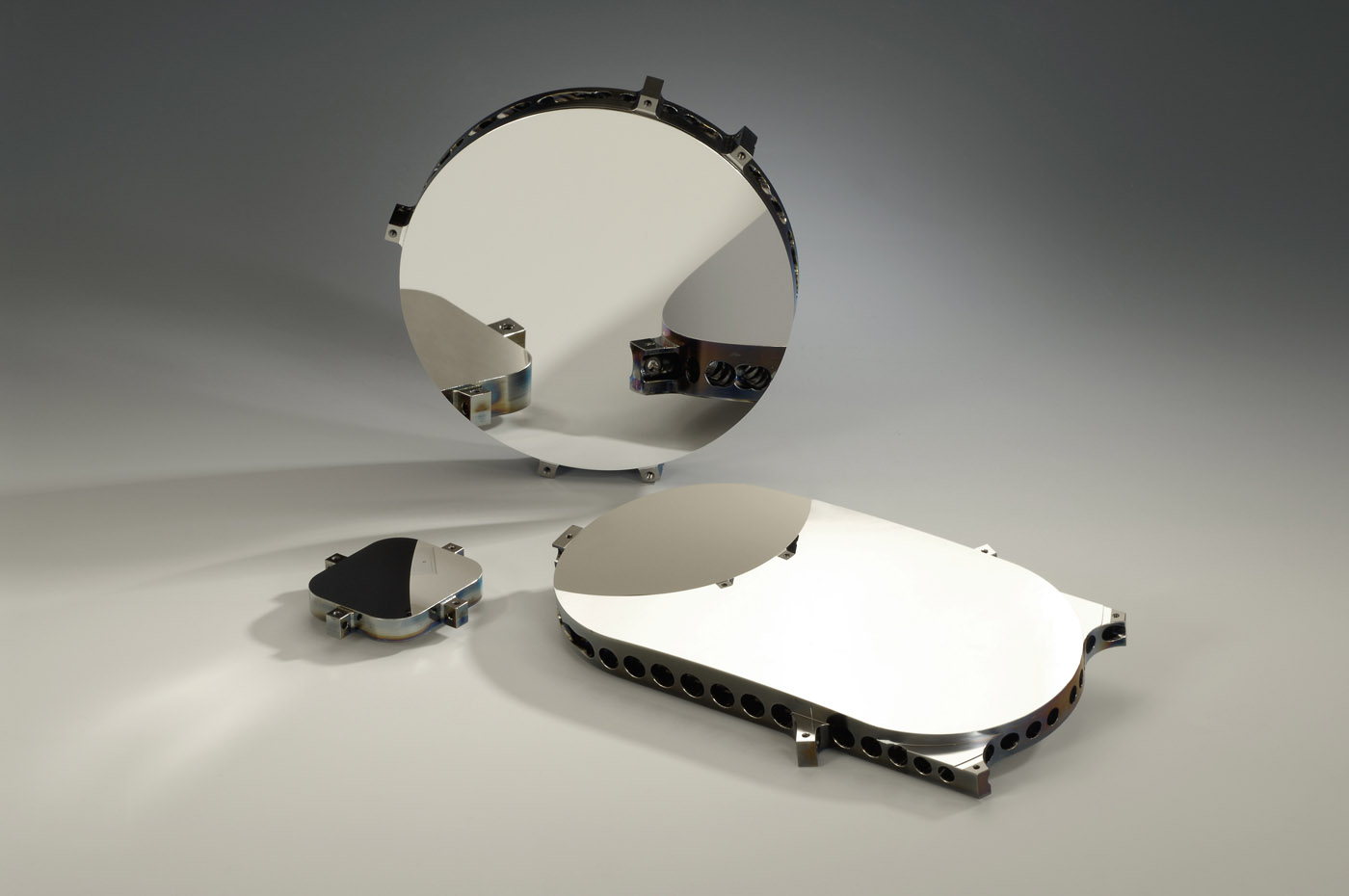

Metal mirrors for space applications, manufactured by ultra-precision machining and coated with highly reflective silver layers.
© Fraunhofer IOF
Metal mirrors for space applications, manufactured by ultra-precision machining and coated with highly reflective silver layers.

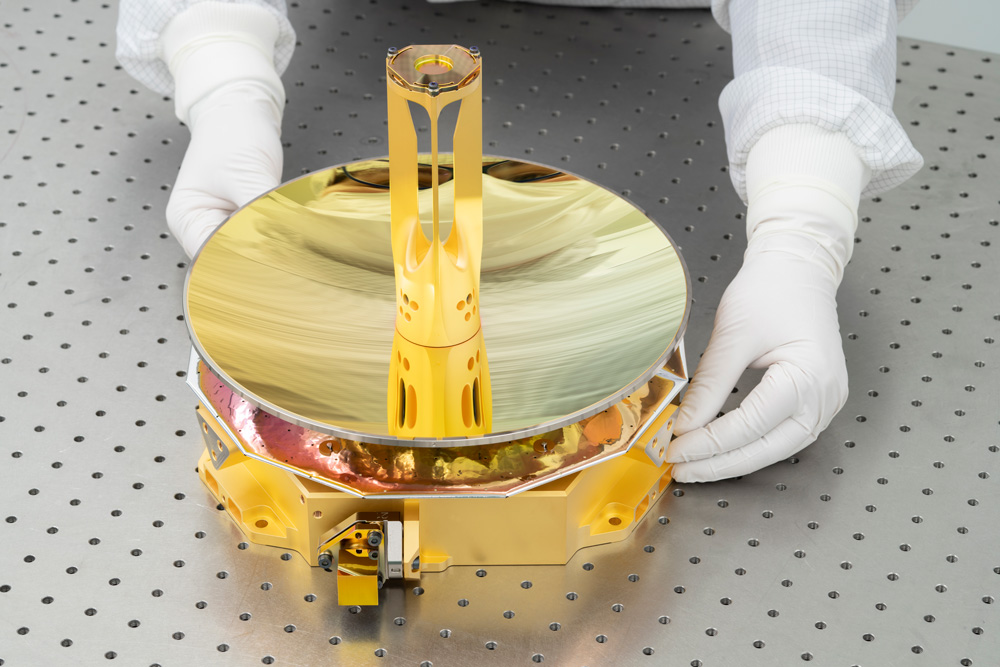

Metal mirrors for space applications.
© Fraunhofer IOF
Metal mirrors for space applications, manufactured by ultra-precision machining and coated with protected gold layers.

Our research strength

Research reports

The research strength of our experts can be seen, among other things, in the contributions to the Fraunhofer IOF Annual Report. Every year, selected research results from the previous year are published in the annual report (archive annual reports). You can find the articles on the developments regarding coatings for plastic optics from the past years in the following list:
