Optical Quantum Technologies

The New Art of Seeing and Communicating

Fraunhofer IOF is a pioneer in applied research on quantum photonics for scientific and industrial applications. It offers innovative solutions for applications in science and industry wherever quantum-technological systems have the potential to enable revolutionary applications. These can be, for example, tap-proof quantum communication, low-noise quantum imaging or advanced ion traps for quantum computers. The Fraunhofer IOF is able to integrate, miniaturize and optimize systems for this purpose. Our competencies cover the entire quantum photonic process chain from modeling to system production - from basic physics to ready-to-use prototypes.

Our services

We offer our customers application-specific and flexible solutions.

Depending on the area of application, we offer our customers individually flexible solutions. In the field of quantum communication, this ranges from space-capable high-performance sources for entangled photons, to complete photonic system solutions based on adaptive optics, to lightweight telescopes for space and ground systems.

As the coordinator of the Fraunhofer-Leitprojekt QUILT, the Fraunhofer IOF also has outstanding expertise in quantum imaging. We develop high-power sources for photon pairs with the widest possible wavelength spread and wavelengths from the infrared to the ultraviolet range. Our system solutions open up new application fields in low-light imaging as well as in previously untapped wavelength ranges and expand the portfolio of microscopic and telescopic imaging methods.

Our portfolio of quantum photonics includes the following application areas:

Measurable tap-proof optical communication
Microscopy in undeveloped wavelength ranges
Optical imaging with minimal radiation dosage
Images and spectral analysis of scattering media, such as tissue, smoke or complex mixtures
Scaling of quantum computers

Selected projects:

Entangled photon source for tap-proof quantum communication

Scientists at the Fraunhofer Institute for Applied Optics and Precision Engineering in Jena have developed a stable, space-suitable source for entangled photons. Such connected or "entangled" photons should in future be used in secure encryption technologies (such as in so-called "Quantum Key Distribution", or QKD for short). In the photon source, a nonlinear, periodically poled crystal (ppKTP) is pumped from two sides in the arrangement of a Sagnac interferometer. The resulting spontaneous parametric fluorescence (Spontaneous Down Conversion, SPDC) in the crystal generates polarization-entangled photons in the transmitter and receiver channels. The source is under continuous development and is one of the most powerful hardware solutions in quantum communication.

Komponenten der verschränkten Photonquelle — © Fraunhofer IOF

As part of the QuNET initiative, the first quantum-secured videoconference between the German Federal Ministry of Research, Technology and Space (BMFTR; formerly German Federal Ministry of Education and Research (BMBF)) and the Federal Ministry for Information Security (BSI) was demonstrated in Bonn in August 2021.

Also included: a further development of the entangled photon source.

The focus of the QuNET work is the so-called "quantum key exchange", also known as QKD (short for "Quantum Key Distribution"). QKD enables the exchange of symmetric keys whose security can be quantified. The BSI is supporting the QuNET initiative and is preparing accompanying and independent test criteria in international cooperation.

More information on entangled photon pair source
Information on QuNET and the technologies used
Press release: First quantum-secured videoconference between two federal authorities

Technologies for Quantum Communication

The operating principle of photon source in quantum communication.

Quantum imaging for the medical domain

Fraunhofer scientists have now developed a new method allowing light-sensitive samples to be observed for a longer time period with higher resolution. This technology is particularly relevant for the field of life sciences, since it allows to image tissue with particularly high contrast and information, without damaging or even destroying cells. This is made possible by quantum technology. Using a so-called "single crystal set up", the scientists were able to generate quantum images and videos.

The advantages of quantum physics for imaging applications are being investigated at the Fraunhofer IOF as part of the QUILT (Quantum Methods for Advanced Imaging Solutions) project.

Laboratory setup for generating quantum images. — © Fraunhofer IOF
Quantum Imaging Setup: This robust one-crystal setup allows you to examine an object in ultraviolet (UV) or infrared (IR) with simultaneous detection in the sensitivity range (VIS) of advanced silicon technology. Central to this quantum technological application is a special crystal, which allows the generation of two entangled photons at different wavelengths (UV, VIS).

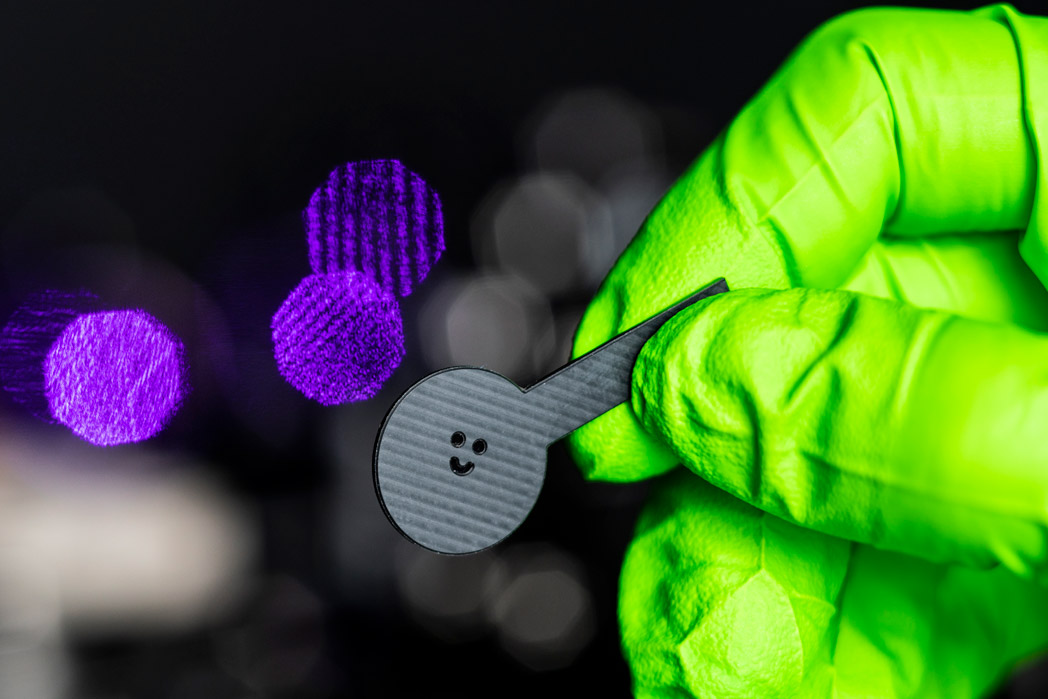

Image of the happy-face template. — © Fraunhofer IOF
First test object for quantum imaging with "undetected light": An amplitude mask in the form of a happy face serves as the first examination object to demonstrate the scheme of quantum imaging technology. The happy face is illuminated with light of a certain wavelength 1.

Representation of the quantum image of the Happy Face — © Fraunhofer IOF
Quantum image of the amplitude mask in the form of a happy face. The image is generated on a camera with light of a specific wavelength 2, which differs significantly from the illumination light. Nevertheless, due to the entanglement of the two light rays (Einstein's "spooky action at a distance"), the image is visible on the camera. It is also possible to map phase objects.

The operating principle of quantum imaging.

Addressing optics for quantum computers

At Fraunhofer IOF, within the research project "Advanced quantum computing with trapped ions" (AQTION), a laser-optical setup was realized that allows to manipulate ions in the ion trap of a quantum computer.

In a quantum computer, which uses the so-called "ion QuBits" as memory units, the ions are held in electromagnetic traps and can be controlled by means of laser beams thanks to the addressing optics of Fraunhofer IOF.

Laser-based addressing optics for a quantum computing ion trap. — © Fraunhofer IOF
Laser-based addressing optics for an ion trap of the next-generation quantum computer being developed by the AQTION project.

Laser-based addressing optics for a quantum computer. — © Fraunhofer IOF
Addressing optics can be used to manipulate ions with laser beams in an ion trap-based quantum computer.

© Fraunhofer IOF
Detailed view of the addressing optics.

Technologies for Quantum Computing
