3D scanner facilitates forensics at the crime scene

10.2.2020

The perpetrator left shoe prints and tire tracks can also be seen. The forensics usually casts such impressions with plaster - a lengthy procedure that also destroys the trace. Using a portable 3D scanner from Fraunhofer IOF, such traces can now be secured non-destructively within seconds. The new "3DF scanner" will be presented at the GPEC police equipment trade fair from 18 to 20th February of 2020 in Frankfurt/Main (Hall 11.1, Stand E120).

If the police commissioner in TV crime series finds a corpse, the forensic collects DNA traces, secures fingerprints, takes photos and casts shoe prints, tire tracks or other traces with plaster. The actual securing of evidence of the criminal investigation department works in a similar way. However, the information content of photos is limited - for example, it is not possible to derive any depth information from them. Even the plastering of shoe prints and the like has its limits: On one hand, the trace is destroyed after plastering. On the other hand, the plaster needs time to harden, especially in a
wet or cold environment it hardens only with difficulty.

The portable device works contactless and is easy to handle

The portable "3DF scanner" makes it possible to secure the tracks easily, quickly and without destruction. It was developed by researchers from the Fraunhofer IOF together with industrial partners. "The scanner records the tracks in three dimensions" says Roland Ramm, a scientist at Fraunhofer IOF. "At only 4.3 kilograms, it is very light, battery-powered and robust against weather and temperature. Besides, it works without contact, so the trace is still intact after scanning." The device can reliably detect even the smallest features, its resolution is below 200 micrometers. Because more important than the shoe size or brand, for example, are small scratches in the shoe profile, which the criminal investigation department can use to assign a shoe print to a specific shoe.

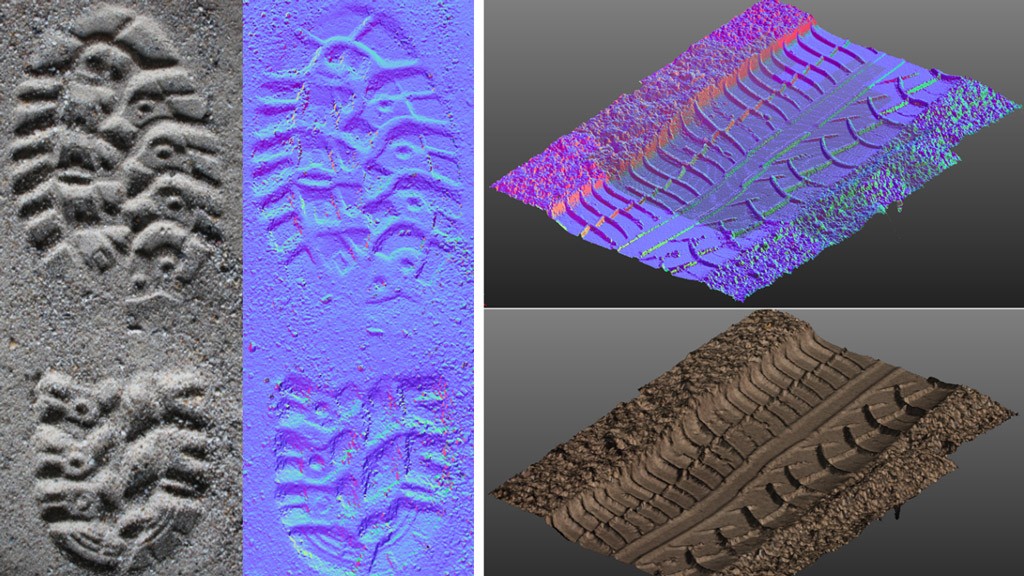

Images of a shoe and a tire print with corresponding 3D image.
© Fraunhofer IOF
Down to the smallest detail - analysis and results of 3D scans of shoe and tire impressions.

In everyday life, the examination with the scanner looks like this: The forensics holds the device over the trace, for example, the shoe print, and starts the recording. At the same time, a camera attached to the scanner takes a photo. A few seconds later the user sees a preview image on the integrated display. On this the user can see whether the image section fits, the image is sharp, and already receives the first results. The detailed evaluation follows in the laboratory because it is usually carried out by other colleagues, such as trassologists. Here, for example, the length of an imprint or the depth of the shoe profile can be analyzed, and comparisons can be made with traces from other crime scenes or a perpetrator.

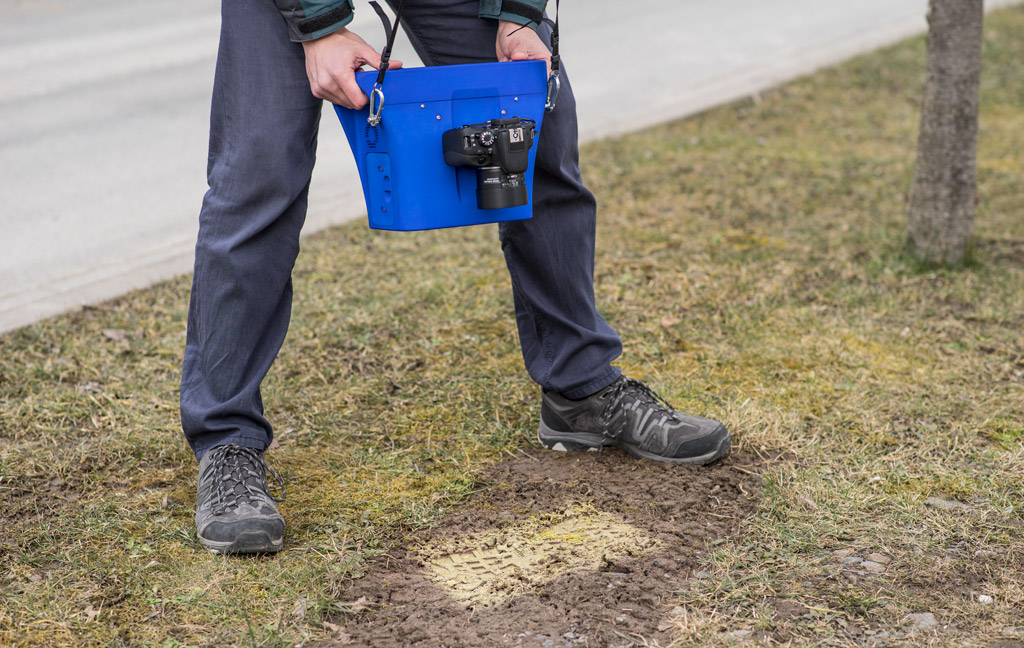

The 3D measuring system above the shoe print in the ground.
© Fraunhofer IOF
Simple and fast scanning with the light-weight 3D measuring system.

To measure the tracks three-dimensionally, the researchers have relied on the pattern projection. Each of the two cameras, which look at the track from slightly different angles, take an image, while a small projector beams a stripe pattern onto the track. Geometric statements can be made based on the deformation of the beamed pattern. The measurement uncertainty is only 20 to 100 micrometers. The validity of the data is thus at least as high - if not higher - than that of data obtained from plastering.

Person takes tracks in the snow with the 3D measuring system.
© Fraunhofer IOF

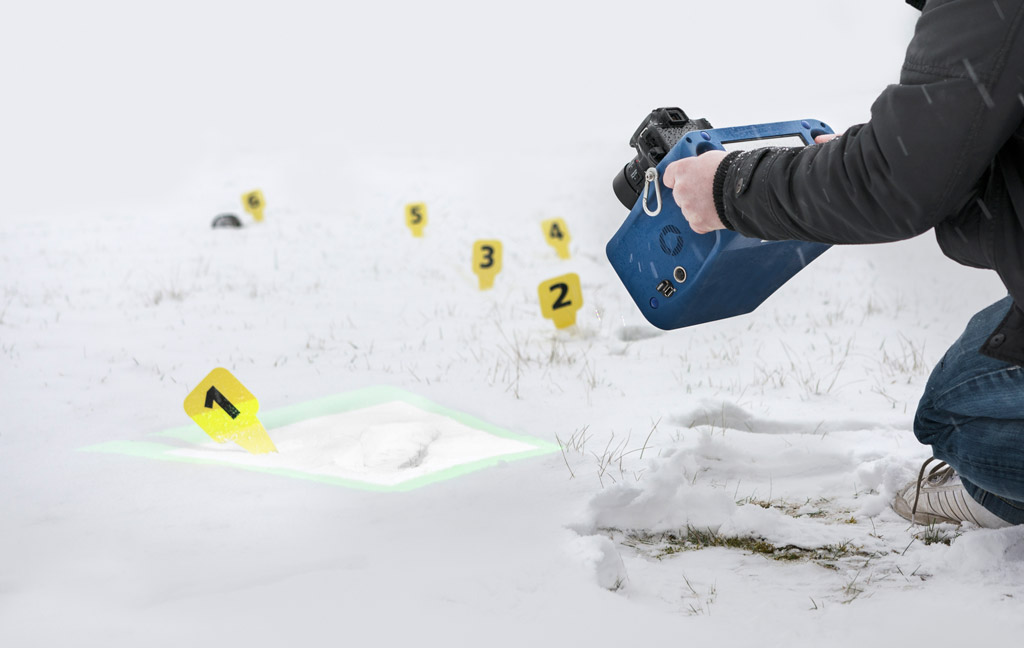

The handheld 3D measuring system also allows for the securing of evidence in the snow.

Presentation at the GPEC trade fair in Frankfurt

In the meantime, the device is marketed by the Italian company Gexcel, which also offers the appropriate evaluation software. Interested police authorities can also borrow the portable 3D scanner from Fraunhofer IOF for test purposes. At the "General Police Equipment Exhibition & Conference GPEC" trade fair in Frankfurt am Main from February 18 to 20, 2020, Fraunhofer IOF researchers will present the "3DF Scanner" (Hall 11.1, Stand E120). Visitors will be able to try out the device live on various tracks, and the evaluation software from Gexcel can also be tested using data from simulated crime scenes.
