Fraunhofer IOF and HENSOLDT Optronics develop optical telescope to explore Jupiter's moon Ganymede

High-performance metal optics awarded Lothar Späth Award

Jena / Oberkochen / Stuttgart (Germany) /

Researchers at the Fraunhofer Institute for Applied Optics and Precision Engineering IOF, together with their partner, have been awarded the Lothar Späth Award for the development of metal-optical precision instruments. The high-performance telescope GALA is to be used in the ESA JUICE mission planned for 2023 to explore Jupiter's moon Ganymede. The award ceremony took place on November 19 in Stuttgart, Germany.

Together with scientists and technicians from HENSOLDT Optronics GmbH in Oberkochen, Germany a research group led by Dr. Stefan Risse and systems engineer Henrik von Lukowicz at Fraunhofer IOF has developed an optical telescope that can handle extreme environmental conditions in ultra-high vacuum. The telescope withstands extreme vibrations during rocket launch, drastic temperature changes as well as high temperature gradients and extreme cosmic radiation exposure, making it suitable for use in space. The team of HENSOLDT and Fraunhofer IOF researchers has now been awarded the third prize of this year's Lothar Späth Award for their joint development.

GALA measuring instrument to explore Jupiter's moons

All tests have already been successfully completed. The award-winning telescope will be used in space research as early as 2023. That is when the European Space Agency will launch the "Jupiter Icy Moons Explorer" (JUICE for short) to explore the planet Jupiter and its moons Europa, Callisto, and Ganymede.

A total of eleven scientific instruments will be on board of the spacecraft. One of them is the "Ganymede Laser Altimeter", also known as GALA. GALA is to explore Jupiter's icy moons, especially Ganymede, which has a strong resemblance to Earth in terms of atmosphere, magnetic field, and water resources. Specifically, the instrument will take high-precision measurements of the icy moon's surface.

To collect this information, GALA will send laser pulses to the lunar surface from an orbit around Ganymede - i.e., from a distance of about 500 kilometers - and receive backscattered signals. The distance to the lunar surface can be determined from the travel time of the pulse, and from this information in turn the topography can be determined. This requires a high-precision laser receiving unit. Fraunhofer IOF developed a special mirror telescope for this purpose, which captures the laser pulses reflected back from the lunar surface. This is how GALA can measure the topography of Jupiter's moon with a resolution of less than 15 cm.

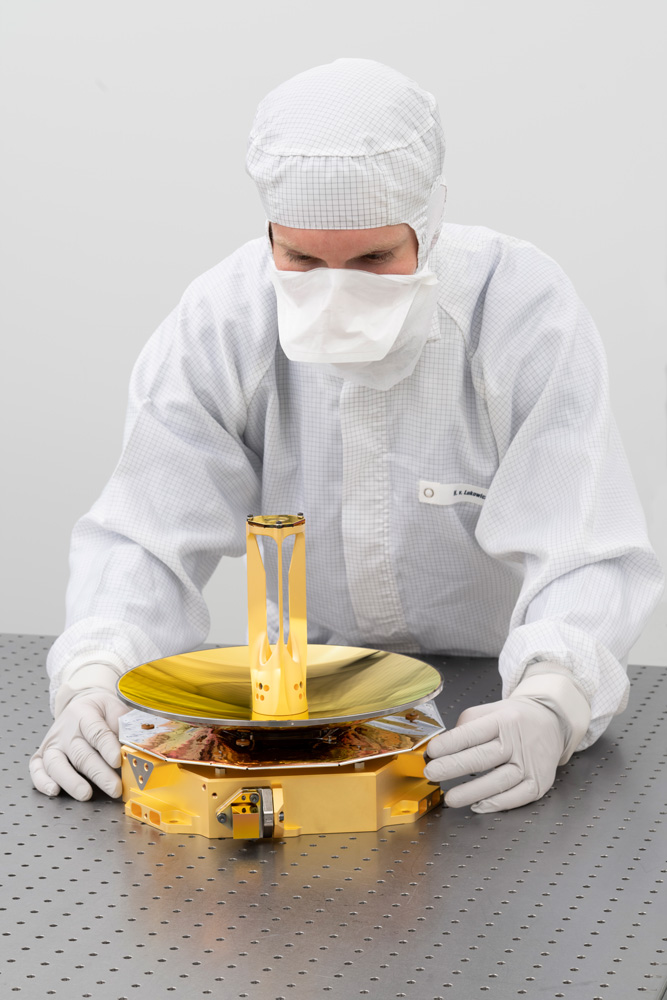

Mirror telescope for instrument GALA between the hands of a researcher.
© Fraunhofer IOF
For the measuring instrument GALA, a mirror telescope was developed at Fraunhofer IOF in Jena.

Applications also for satellite communications and quantum optics

The development work performed by the team also has a wide range of applications beyond space research: "In addition to existing market access in Earth observation, security technology and institutional remote sensing, the development opens up market access to up-and-down links and satellite communications, quantum optics and quantum optical encryption technologies," said the Lothar Späth Foundation at the award ceremony.

HENSOLDT Optronics GmbH, based in Oberkochen, Germany, develops sensor solutions for security applications and space optics. On the Fraunhofer IOF side, Dr. Stefan Risse, Henrik von Lukowicz, and freeform developer Dr. Johannes Hartung were honored for their joint development work on the GALA measuring instrument. On the part of HENSOLDT Optronics, Dr. Kai Weidlich (Product Manager High Performance Optics), Henry Wegert (Systems Engineer), and Boris Trefzger (Structure Analyst) were honored.

Group picture of the winners of the Lothar Späth Award 2021.
© Lothar Späth Award Stiftung
Prof. Dr. Walter Rosenthal, President of Friedrich Schiller University Jena and presenter of the Lothar Späth Award, awarded the prize to the winners (from left to right): Dr. Kai Weidlich (HENSOLDT), Dr. Stefan Risse (Fraunhofer IOF), Henry Wegert (HENSOLDT), and Henrik von Lukowicz (Fraunhofer IOF).

About the Lothar Späth Award

The Lothar Späth Award recognizes outstanding innovations in products, processes, and services in Baden-Württemberg and Thuringia that have been developed as a result of collaboration. It honors the individuals from science and industry behind it. In 2018, the award thus underscored for the first time the importance of partnership-based, forward-oriented thinking and action for Germany's leading position in the world.

In the spirit of Prof. Dr. h. c. Lothar Späth (Minister President of Baden-Württemberg from 1978 to 1991 as well as Chairman of the Executive Board of Jenoptik AG), the award honors and promotes special developments for the benefit of society. The jury members of the award include former German Chancellor Gerhard Schröder as well as former Minister President of Baden-Württemberg and former EU Commissioner Günther Oettinger.
