Fraunhofer IOF researchers develop production-ready transmitting and receiving telescope for laser communication terminal

Satellite-based laser communication ready for series production

Jena / Isseroda (Germany) /

Laser communication promises data rates in the gigabit to terabit range - significantly higher than conventional wireless connections. Europe wants to expand its expertise in this field and install its own satellite networks in the future. Together with the companies TESAT and SPACEOPTIX, researchers at the Fraunhofer Institute for Applied Optics and Precision Engineering IOF have now developed a transmitting and receiving telescope for satellite-based laser communication, which could form the basis for such a network as a series product.

Fast and secure data exchange - even in remote areas: that is the promise of laser communication. With his Starlink network, tech mogul Elon Musk has been working for several years to install a network for nationwide satellite communication in low earth orbit. Europe is also aiming for these spheres and at the same time wants to make itself independent of providers and suppliers from abroad in the field of laser communication. Technological sovereignty is the goal, especially in critical infrastructures such as security and civil protection.

The European Space Agency (ESA) is therefore supporting European research institutions and companies in researching and developing their own systems and expertise with its ScyLight ("Secure and Laser communication technology") program. One of these companies implementing a development project to provide technology as part of the ScyLight program is TESAT, a company based in Baden-Württemberg (Germany) with a long tradition in satellite communication and which has also been building laser communication systems for many years, including the SCOT135 system, a scalable optical communication terminal specially developed for use in medium earth orbit (MEO) and geostationary earth orbit (GEO).

Logo of the ESA ScyLight program
© ESA
Logo of the ESA ScyLight program

"Every hour of production time counts"

Researchers from Jena have spent three years developing a space-robust transmitting and receiving telescope for this laser terminal, which - unlike science-oriented telescopes, for example - can be manufactured not only in small quantities but also in series. "Our aim was to develop a robust and cost-effective series product," explains Dr. Henrik von Lukowicz, the responsible project manager and head of the Optical and Mechanical System Design department at Fraunhofer IOF. "For systems that are to be manufactured in large quantities, every hour of production time is ultimately important."

The SCOT135 system is expected to achieve a bandwidth of up to 100 Gbit/s and bridge distances of up to 80,000 km with the help of the telescope developed in Jena. "This is new in combination with terminals, which are built in large numbers and will eventually be linked to form an inter-satellite network," says von Lukowicz. "We have developed a universally applicable telescope that is both a transmitter and receiver unit."

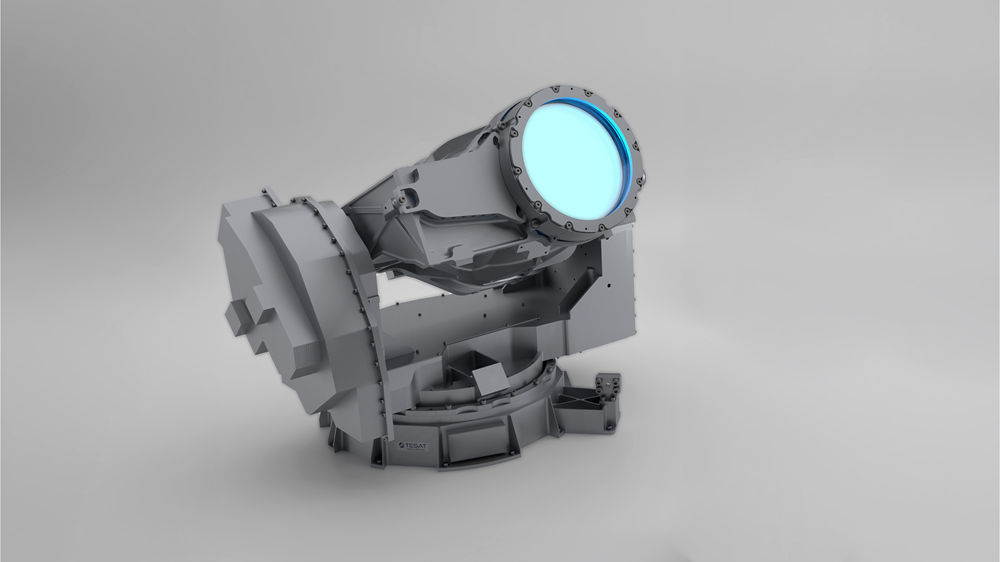

The telescope mounted in the rotary fork.
© TESAT
The telescope mounted in the rotary fork.

Robust design for demanding conditions

When used in space, the telescope must withstand both the environmental stresses encountered there and the stresses caused by the operation of the system itself: "Relatively high laser powers are used in laser communication systems. Up to 50 watts are used here. For a space telescope, this is a relatively high amount of power that propagates through the system," explains von Lukowicz. "This leads to heat build-up, which can cause changes to the optics. But of course the performance of the system must not be impaired as a result. Thermal management was therefore a particularly important aspect of our design."

In addition to thermal regulation, a wide range of expertise from Fraunhofer IOF was incorporated into the design development, based on years of experience with space projects at the institute. "This involves a wide range of issues, such as how to manufacture particularly lightweight components for space flights, methods for the robust adjustment of components and the finest structuring of the optics for precise performance," explains von Lukowicz. "We have combined many of our skills and capabilities in this telescope."

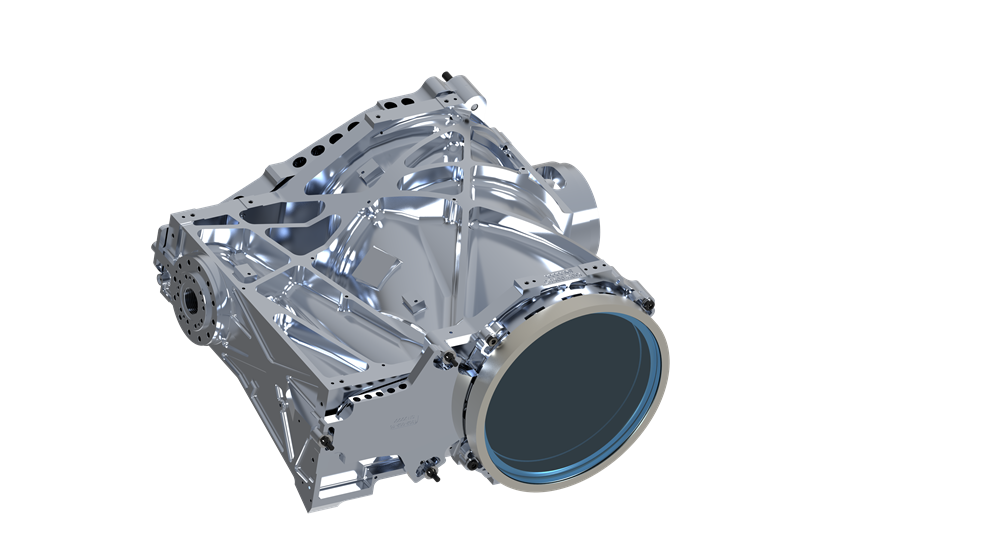

Visualization of the transmitting and receiving telescope developed at Fraunhofer IOF for the SCOT135 laser terminal.
© Fraunhofer IOF
Visualization of the transmitting and receiving telescope developed at Fraunhofer IOF for the SCOT135 laser terminal.

Design at Fraunhofer IOF, production at SPACEOPTIX

The design of the telescope was developed by researchers at Fraunhofer IOF in Jena. The new space company SPACEOPTIX, a Fraunhofer IOF spin-off, is responsible for production at the Isseroda site in Thuringia (Germany). SPACEOPTIX has already manufactured five systems for TESAT. In future, a further 50 units per year may follow. "The industrial series production of highly complex systems requires new ways of thinking. This is precisely where our strength lies: setting new standards and opening up new markets in New Space," says Dr. Frank Burmeister, former Fraunhofer researcher and now Head of Research and Development at SPACEOPTIX GmbH.

The first flight models were successfully delivered to TESAT in June. "The transmitting and receiving telescope developed in Jena is an important key component for our SCOT135 system. The collaboration with Fraunhofer IOF and SPACEOPTIX has brought us a big step closer to our goal of becoming a central enabler for European laser communication not only for near-Earth laser-based satellite networks but also in medium and geostationary orbits," summarizes Dr. Frank Heine, Chief Developer for Laser Systems at TESAT.

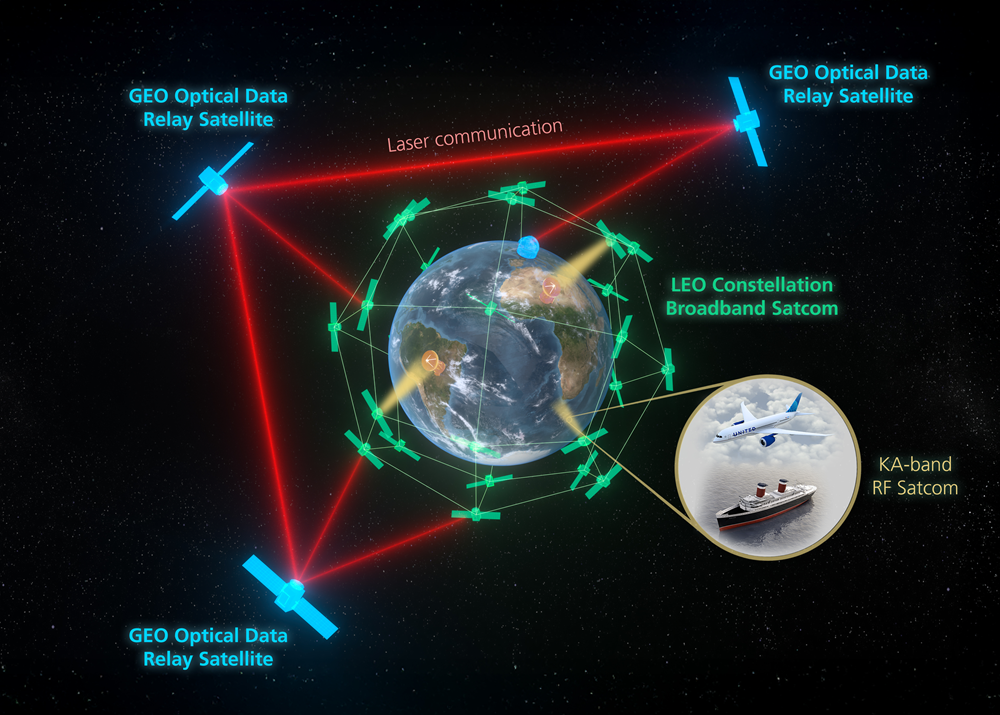

Schematic representation of a network for laser communication. The telescope from Jena is used for the Inter-Satellite Optical Link.
© Fraunhofer IOF
Schematic representation of a network for laser communication. The telescope from Jena is used for the Inter-Satellite Optical Link.
